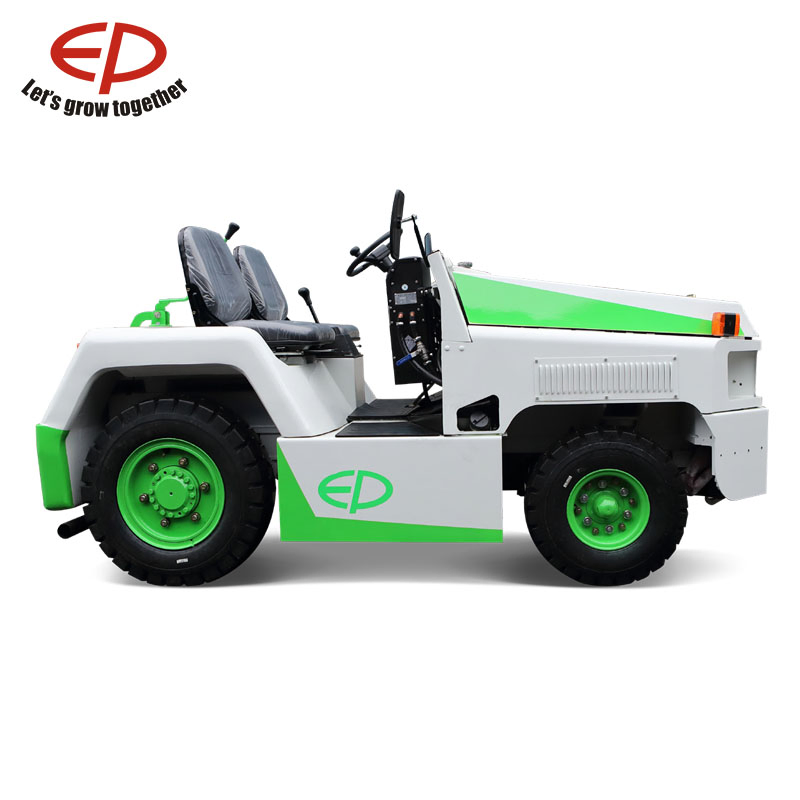

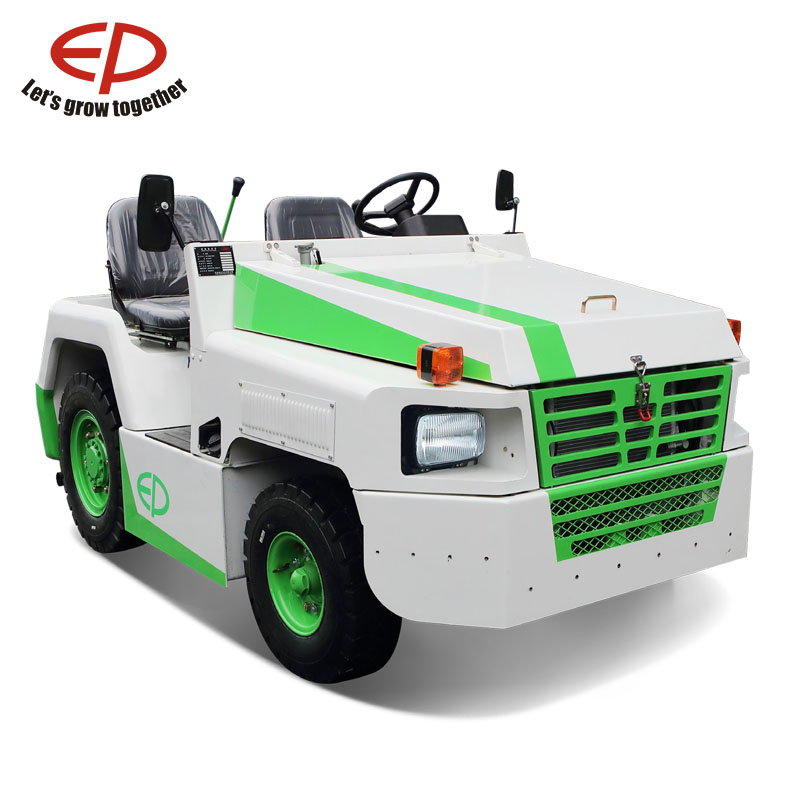

25kn Drawbar Pull Diesel Engine Powered Airport Baggage Tow Tractor

1 / 5

25kn Drawbar Pull Diesel Engine Powered Airport Baggage Tow Tractor

Customization:	Available
Transmission Type:	Automatic
Power:	Diesel

Send Inquiry

Product Description

📋 Basic Info.

Model NO.EQC252-BDS

Load Capacity25kn

Emission StandardEuro 3

Drive WheelRear Wheel

Seats2

Horsepower＜150hp

Engine Capacity＜4L

Tire CertificationISO

Tire DesignPneumatic

ConditionNew

Engine(Mitsubishi) S4s

Max. Drawbar Pull25kn

Max. Towed Weight32000kg

Travel Speed25/22 Km/H

Max. Gradeability38%

Wheelbase1620mm

Turning Radius3000mm

Service Weight3900kg

Transmission Model(Exedy) Kt

SteeringIntegral Power Steering

Service BrakeHydraulic Drum Brake

Parking BrakeActing on Driving Wheel

Floor Height425mm

Seat Height980mm

Ground Clearance165mm

Specifications3015*1440*1450mm

TrademarkEP

Production Capacity4000 Units

⚙️ Product Description

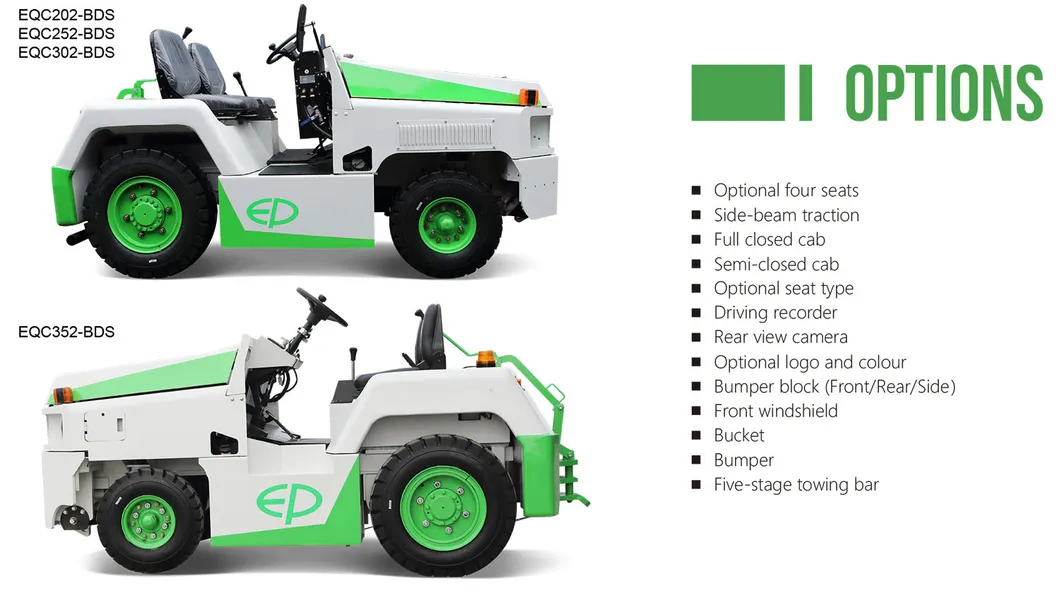

Category	Technical Parameters	Unit	EQC202-BDS	EQC252-BDS	EQC302-BDS	EQC352-BDS
Performance	Max. drawbar pull	KN	20	25	30	35
Performance	Max. towed weight	kg	25000	32000	38000	44000
Travel Speed	Forward / Backward	km/h	25 / 22	25 / 22	25 / 22	27 / 13
Gradeability	Max. gradeability (No load)	%	38	38	35	35

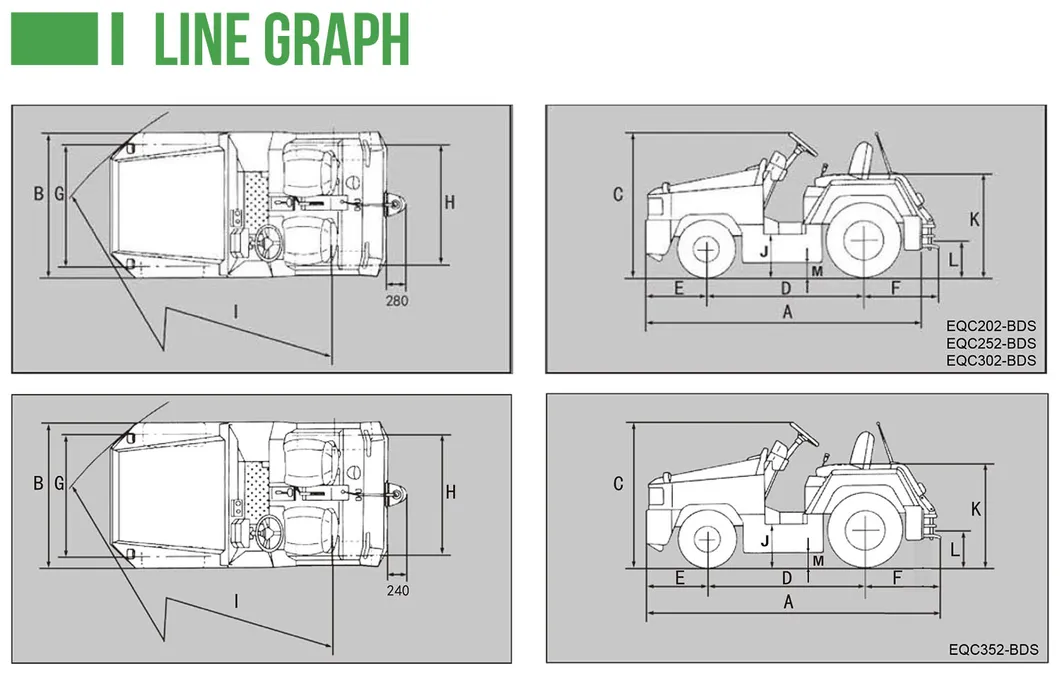

Dimensions & Weights
Dimension	Overall length (with coupler)	mm	3015	3015	3015	3180
Dimension	Overall width	mm	1440	1440	1440	1440
Dimension	Wheelbase	mm	1620	1620	1620	1605
Weight	Truck weight (No load)	kg	3450	3900	4400	5100
Engine & Drive System
Engine	Model	-	(MITSUBISHI) S4S			(MITSUBISHI) S4S-DT
Engine	Rated output	kw/rpm	47/2500			55/2500
Transmission	Automatic model	-	EXEDY KT (Hydraulic)			Graziano PST2
Steering	Type	-	Integral Power Steering

❓ Frequently Asked Questions

What is the maximum towing capacity of the EQC252-BDS?

The EQC252-BDS model has a maximum drawbar pull of 25kn and is capable of towing a maximum weight of 32,000kg on dry, even concrete surfaces.

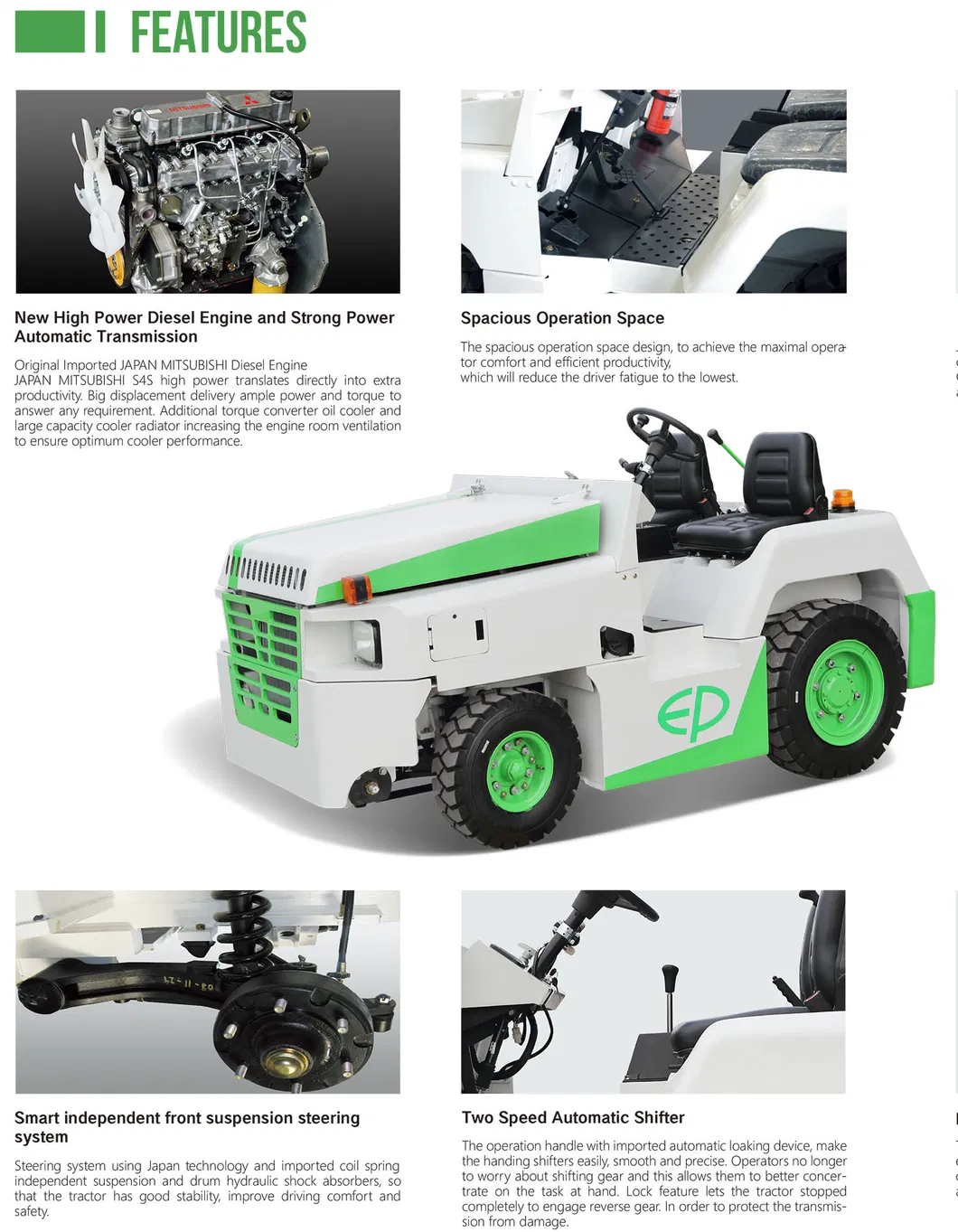

What engine is used in this airport baggage tow tractor?

This tractor is powered by a reliable Mitsubishi S4S diesel engine, featuring a displacement of 3331cm³ and a rated output of 47kw at 2500rpm.

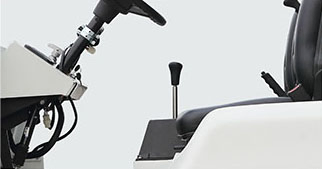

Is the transmission manual or automatic?

The tractor is equipped with an EXEDY KT hydraulic automatic transmission, ensuring smooth power delivery and ease of operation for the driver.

What are the dimensions and turning radius?

The overall dimensions are 3015mm in length, 1440mm in width, and 1450mm in height. It features a compact turning radius of 3000mm, making it highly maneuverable in tight airport environments.

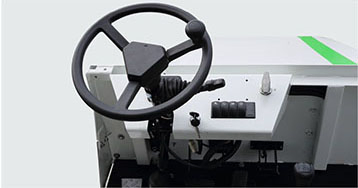

What type of steering and braking systems are installed?

It features an Integral Power Steering system. The braking system includes a hydraulic drum service brake and a parking brake that acts directly on the driving wheels for maximum safety.
